StarTech.com 3 Port 2b 1a PCI Express FireWire Card 8STPEX1394B3

Product Description

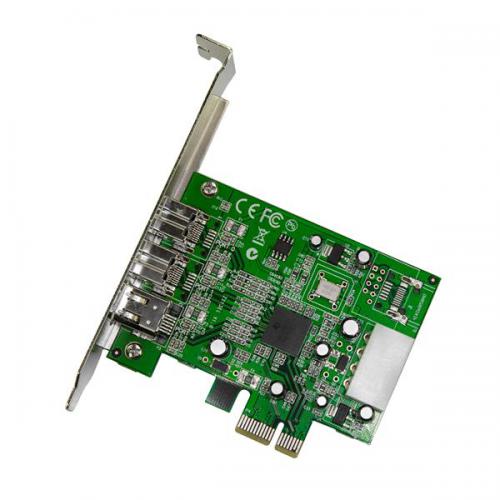

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.

1. Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
2. One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
3. Built with a native PCI Express chipset, no bridge chip
4. Includes low profile/half-height installation bracket
5. Internal power connector for high powered FireWire devices
6. Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
7. Plug-and-Play and hot-swap compatible

1. Manufacturer:  StarTech.com
2. Type:  PCI Cards
3. Read Speed:  800 Mbps, 400 Mbps
4. Capacity:  3 Ports
5. Dimensions:  120x18x85mm
6. Form:  FireWire Card
7. Read Speed:  800 Mbps, 400 Mbps
8. Warranty:  Lifetime Warranty
9. Weight:  48g
10. Brand: StarTech
11. Pack Size: 1
12. Parcel Dimensions: n/a
13. StarTech Reference: 8STPEX1394B3
14. EAN/UPC Number: 65030825139
15. Datasheet: Download Datasheet
16. Manual: Download Manual
