StarTech 8 Port Rackmount USB VGA KVM Switch with Audio 8ST10011667

Product Description

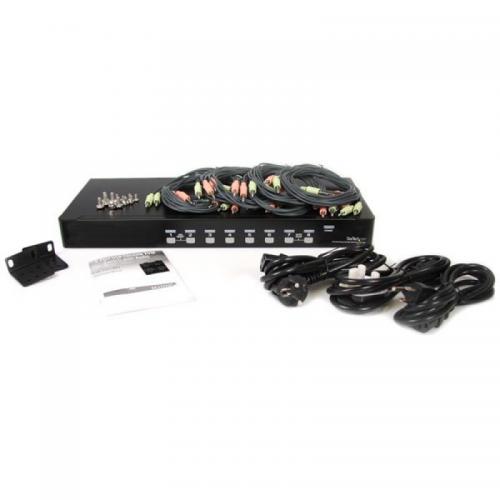

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.
Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

1. Supports Hotkey and front panel push-button switching
2. Identify and select computers by names assigned via the OSD menu
3. OSD security allows each PC to be password protected
4. Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
5. Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
6. Auto-scan function automatically selects computer sequentially
7. Cascade configuration expands system capability
8. USB console interface
9. Plug-and-play system configuration
10. USB Keyboard and Mouse combo supported on one USB connection

1. Connection 1:  2 x 3.5mm Mini-Jack, VGA, 2 x USB 2.0 Type A
2. Form:  KVM Switches & Cables
3. Manufacturer:  StarTech.com
4. Type:  External Computer Cables
5. Colour:  Black
6. Connection 2:  8 x VGA, 16 x 3.5mm Mini-Jack
7. Dimensions:  123x591x264mm
8. Warranty:  3 Year Warranty
9. Weight:  2.6kg
10. Brand: StarTech
11. Pack Size: 1
12. Parcel Dimensions: n/a
13. StarTech Reference: 8ST10011667
14. EAN/UPC Number: 0065030837248
15. Datasheet: Download Datasheet
16. Manual: Download Manual
