StarTech 16-Port Industrial USB 5Gbps Hub Switch 8ST10443616

Product Description

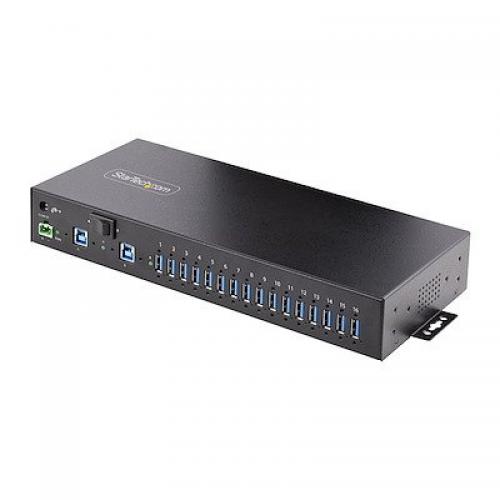

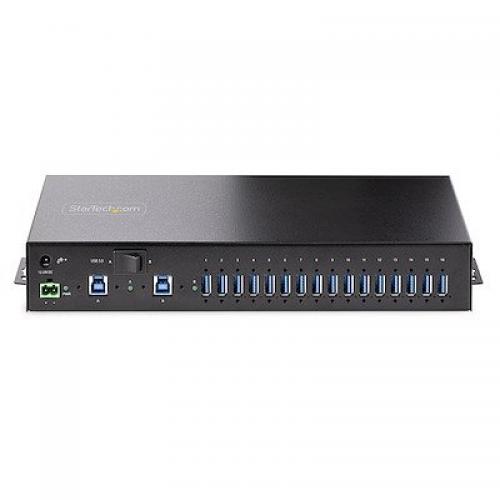

The 16-Port Industrial USB 5Gbps Hub with Power Adapter features 16 downstream USB-A ports. The rugged all-metal construction is suitable for use in industrial rackmount applications. Level-4 Electrostatic Discharge (ESD) protection safeguards against 15kV Air 8kV Contact discharges. The hub features a 2-port host switch, enabling users to switch between two host devices.

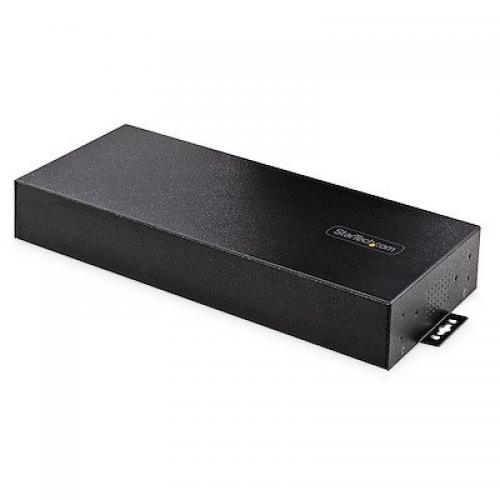

This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that protects against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity.

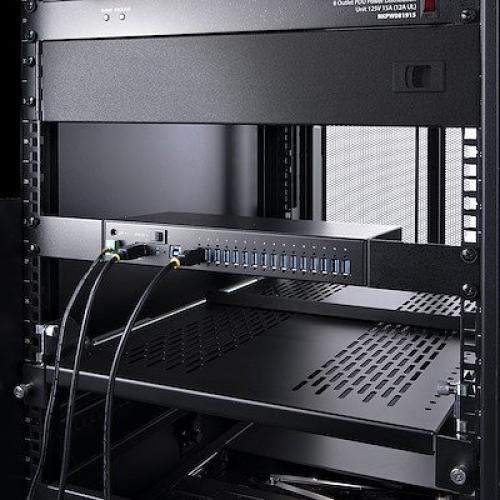

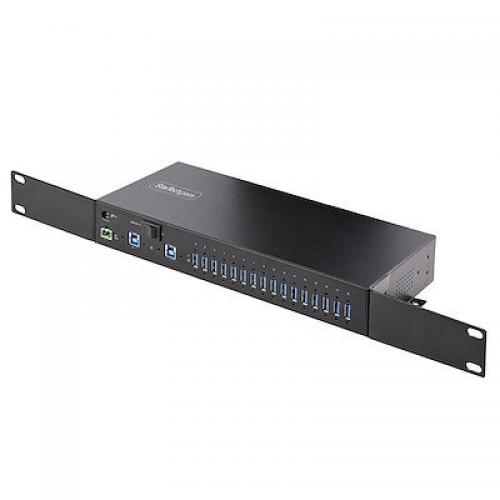

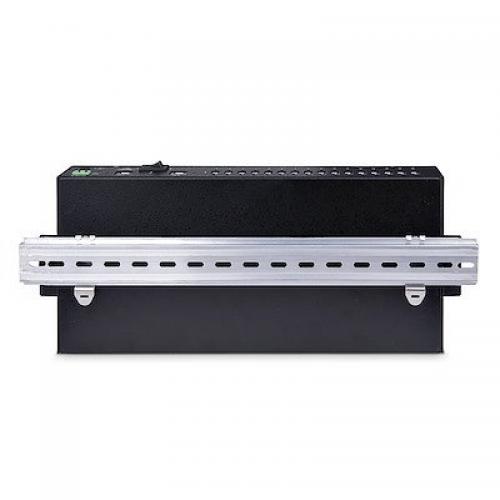

The 16-Port USB hub can be attached to a surface (e.g., atopunderneath a desk or wall mounted), rack mounted, or DIN-rail mounted. The 19 rackmount rails are compliant with EIA-310-D standards, ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centres and server rooms. Mount industrial automation and control equipment in an electrical enclosure or cabinet, using the standard DIN-rail (Top HatTH) mounting hardware.

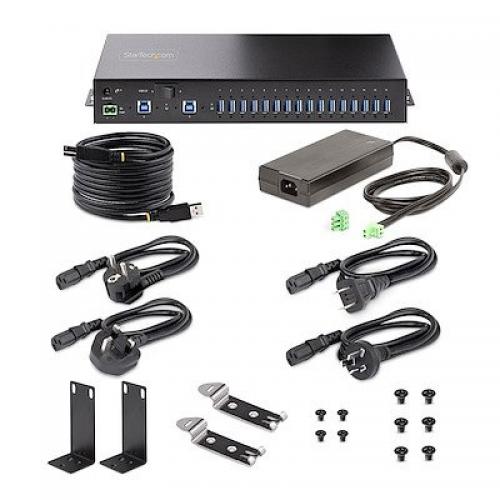

This USB hub includes a 160W power adapter that connects to the 2-wire terminal block connector. When connected to the power adapter, the USB hub supports USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (115W combined (1.5A7.5W per port), or max 2.0A10W per port when only one of both ports is used.

For optional power redundancy, the USB hub features a secondary power input where a barrel-power adapter (not included) can be connected. The barrel-power input supports a 12-to-24-volt input range, and can be ideal for mission critical applications.

The USB Hub connects to two desktop or laptop computers, and features a dual-host switch enables easy toggling between the host devices.

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. This product utilizes the USB Event Monitoring utility. Use this utility to track and log connected USB devices.

1. Manufacturer:  StarTech.com
2. Type:  Ethernet Switches
3. Data Rates:  5 Gbps
4. Dimensions:  3.1x13x4.4mm
5. Number of Ports:  16 Ports
6. Warranty:  2 Year Warranty
7. Weight:  1.1kg
8. Wired/wireless:  Wired
9. Brand: StarTech
10. Pack Size: 1
11. Parcel Dimensions: n/a
12. StarTech Reference: 8ST10443616
13. EAN/UPC Number: 0065030905381
14. Datasheet: Download Datasheet
15. Diagram: Download Diagram
16. Quick Start: Download Quick Start
