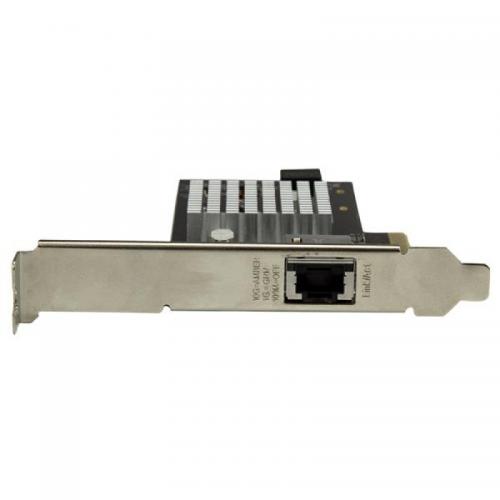

StarTech 1 Port PCIe 10Gb Ethernet Network Card 8ST10098507

Product Description

Heres a powerful and cost-effective solution for upgrading your server or workstation to 10 Gigabit Ethernet networking over copper. This PCI Express 10G NIC lets you add an Ethernet port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G 1G and 100Mbps.

Reliable, high-performance connectivity
This 10G network card utilizes the Intel X550-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3uaban standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up to 10Gbps in each direction (20Gbps total). It connects easily through a single, four-lane (x4 or higher) PCI Express slot.

The Intel X550-AT chipset provides many advanced features including Intel Virtualization Technology for connectivity and PXE network boot support. The Intel chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation. It also lets you take advantage of advanced features such as VLAN tagging, up to 15K jumbo frame support and Auto MDIX.

Cost-effective and versatile multimode connectivity
This five-speed NIC provides a cost-effective and versatile networking solution, by giving you the additional bandwidth your network needs without having to overhaul your infrastructure wiring. It lets you add an Ethernet port which can be accessed at multiple speeds 10G, 5G, 2.5G 1G and 100Mbps. Compatible with a broad range of operating systems, the 10G NIC is fully compliant with 10GBase-T and NBASE-T specifications. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)

The PCIe 10G network card features advanced NBASE-T technology, supporting the latest multigigabit equipment, including new Cisco campus switches and Aruba Networks access points. The card enables you to connect to NBASE-T based equipment at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a. The Ethernet network card also supports the more common 10G over copper, and 1G network connections using existing Cat 6Cat5e or better cabling.

Easy installation
With its dual-profile design, the network card is easy to install into a wide range of computerserver chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profilehalf-height installation bracket that you can use as needed.

The ST10000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

1. Add a 10G /5G/2.5G/1G/100Mbps R-J45 Ethernet port to provide cost-effective network connectivity for high bandwidth workstations and servers
2. Compliant with 10GBase-T and NBASE-T specifications
3. Intel X550-AT chipset with Intel Virtualization Technology for connectivity (Intel VT-c)
4. Fully compliant with IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T)
5. Up to 20Gbps (full duplex) bandwidth
6. Up to 9K jumbo frame support
7. PXE network boot support and Auto MDIX

1. Manufacturer:  StarTech.com
2. Type:  PCI Cards
3. Manufacturer:  StarTech.com
4. Type:  PCI Cards
5. Capacity:  1 Port
6. Connector Type:  1 - PCI Express x4 Male
7. Dimensions:  68.5x152x121mm
8. Form:  Adapter Card
9. Internal Ports:  1 - RJ-45 Female
10. Warranty:  2 Year Warranty
11. Weight:  96g
12. Capacity:  1 Port
13. Connector Type:  1 - PCI Express x4 Male
14. Dimensions:  68.5x152x121mm
15. Form:  Adapter Card
16. Internal Ports:  1 - RJ-45 Female
17. Warranty:  2 Year Warranty
18. Weight:  96g
19. Brand: StarTech
20. Pack Size: 1
21. Parcel Dimensions: n/a
22. StarTech Reference: 8ST10098507
23. EAN/UPC Number: 5057103201518
24. Datasheet: Download Datasheet
25. Quick Start: Download Quick Start
