Bench Psu Phe

Product Description

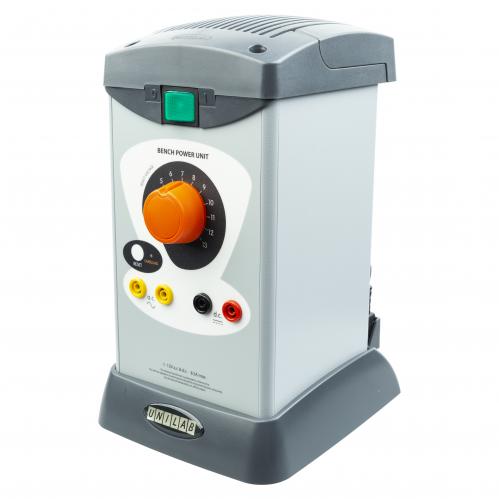

Our most popular general purpose power supply. The output voltage is selected by a rotary switch on the front of the unit, output is in 1V steps up to a maximum of 13V. It provides 0 - 13V ac or unsmoothed dc in 1V steps at a maximum current of 8.5A. The ac and dc outputs may be used simultaneously, provided the combined output does not exceed 8.5A. Internal heavy duty relays allow the voltage to be switched without switch contact problem, ensuring long switch lifetime.The internal, quiet-running fan will hardly be noticed but it reduces the already low thermal stress in the unit still further, ensuring long life of the instrument. Triple protection is provided by a resettable electronic overload trip, thermal transformer trip and slow-blow fuse on the primary.Overloads are indicated by the LED changing from green to red.The mains cord is kept tidy, by means of the cable retainer on the back of the unit which allows the cable to be stowed away neatly with the use of winding hooks and a clip to secure the cable.The unit is recommended for general purpose laboratory work by teachers, technicians and students.Output voltage selected by rotary switch in 1V steps up to 13VLong switch lifetime - switch voltage safely at full load without switch contact arcingContinuously rated output of 8.5A, a.c. or d.c.Sockets accept standard 4mm plugs and shrouded plugsSnap up handle - safe to carry with one handInternal fan for cool-running under loadFully protected secondary, by high speed, resettable electronic tripSlow-blow fuse protection for primaryAdditional thermal trip protection for transformerCompliant to EN61010-2010 with certificates available on requestDimensions:Width: 175mm.Depth: 190mm (including cable clips 206mm).Height: 298mm.Mass: 4.8kg.

Product Specification

1. Brand: School Stationery
2. Pack Size: 1
3. Parcel Dimensions: n/a
4. School Stationery Reference: HE1008189
5. EAN/UPC Number:
